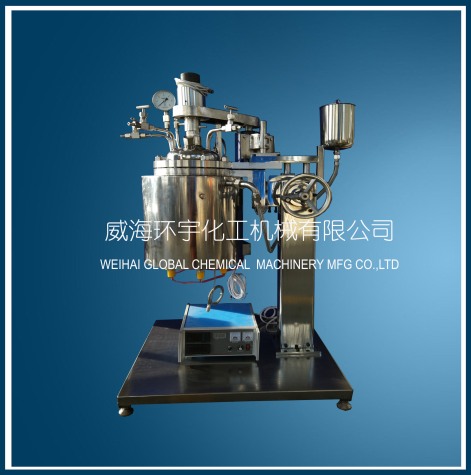

Lifting magnetic reactor has the characteristics of static sealing, no leakage, stable operation, low noise and easy operation. It is an ideal device for users to carry out various chemical reaction tests.

Ring rare earth permanent magnet drive agitator is used in lift magnetic reactor, which has the characteristics of large stirring moment, complete static sealing, no leakage, high temperature resistance, high pressure, high vacuum, high stirring speed, stable operation, low noise, wide application range, simple use and easy operation. It is an ideal installation for various stirring reactions in laboratory. Prepare. It is suitable for stirring reactions of materials with different viscosities under different reaction conditions, such as gas-liquid reaction, gas-liquid-solid reaction, liquid-solid reaction, etc. The axle sleeve is made of self-lubricating graphite, ceramics, PTFE filled carbon fibers and other materials. Its main technical parameters are the same as GSH series. Its main characteristics are that on the basis of GSH series reactor, equipment base, bracket and kettle cover lifting device are added. The kettle cover is raised by rotating the screw rod driven by the lifting handwheel on the rotating equipment. By pressing the positioning pin of the lifting square iron, the kettle cover can be moved to the side to facilitate feeding, discharging and cleaning. Less manual labor, more convenient and faster to use. Volume greater than 10L is equipped with worm gear reducer hoisting kettle cover. The handwheel of rotary worm gear reducer is lifted by wire rope.

Lifting magnetic reactor is divided into 0.5, 1, 2, 3, 5, 10, 15, 20, 25, 30, 50, 100L by volume. It can also customize other volumes of lifting magnetic reactor according to user's requirements.
